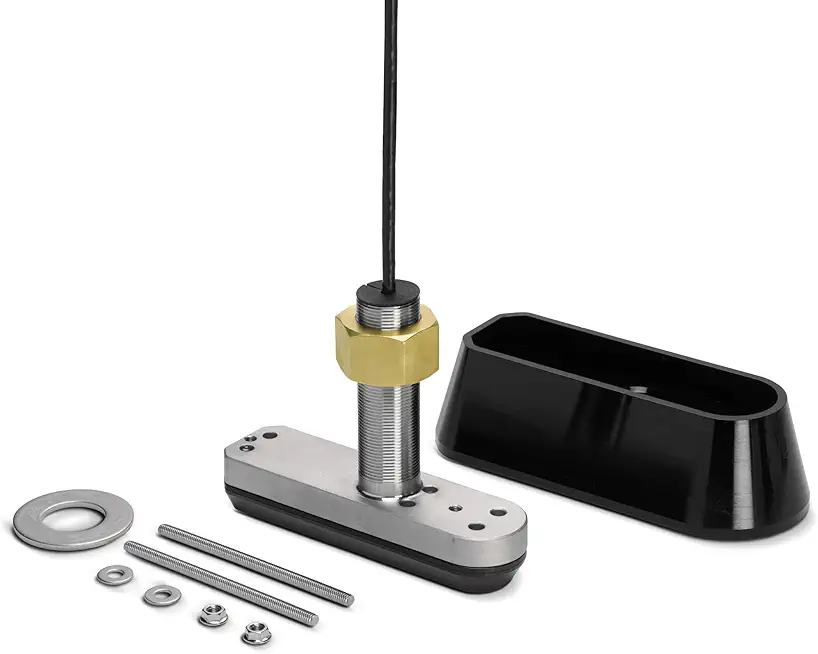

710302-1 SSTH 14 HW MSI+ T – SOLIX MEGA SI+, DI+, DS Chirp w/Temp Thru-Hull Transducer

About this item
Compatible with: All XPLORE models, All APEX models, All SOLIX G2 and G3 models
Connects to HELIX 8-15 MSI+ G3N and G4N models using adapter cable MKR MI-1 Humminbird HELIX Adapter Cable (#1852088)
Cable Length: 20 Feet
This transducer provides Side Imaging (800kHz/455kHz), Down Imaging (MEGA DI+/800kHz/455kHz) and Dual Spectrum CHIRP 2D sonar with a CHIRP range of 150-220kHz
MEGA Side Imaging Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (122m)
MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 250ft (76m), MEGA DI+: 1075-1150 kHz – 200ft (61m)
Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
